Mechatronics UF12AMR Series 120mm x 120mm x 38mm AC Axial Fan

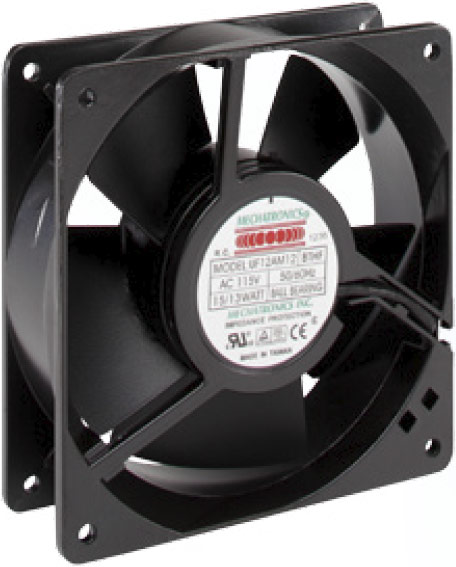

UF12AMR_photo
Check Stock Request Quote

Specifications

Series UF12AMR
Product Type AC Axial Fans
Dimensions 120mm x 120mm x 38mm
4.72in x 4.72in x 1.50in
Rated Voltage 115/230VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 0.55 kg
Frame Construction Die-cast Aluminum
Impeller Construction Steel
Motor Type Shaded pole
Motor Protection Impedance protection
Storage Temp -40°C ~+90°C
Operating Temp -40°C ~+90°C
Insulation Class Class F

Available Options

Bearing Options Ball bearing with high temp grease
Connection Options 0.110" Terminal tabs, Lead wires
Protection Options Conformal coating
Additional Options Tachometer Output

Accessories

Plastic Fan Guards & Filters 09450 120mm (4.72") Square Plastic Fan Guards & Filters
Filter Kits AFG-12T 120mm (4.72") Square Filter Kits
AFG-12TR 120mm (4.72") Square Filter Kits
PFG-12 120mm (4.72") Square Filter Kits
PFG-12X3 120mm (4.72") Square Filter Kits
PFG2-12 120mm (4.72") Square Filter Kits
PFG2-12NR 120mm (4.72") Square Filter Kits
Metal Fan Guards SGR-47 120mm (4.72") Square Metal Fan Guards
SGR-47A 120mm (4.72") Square Metal Fan Guards

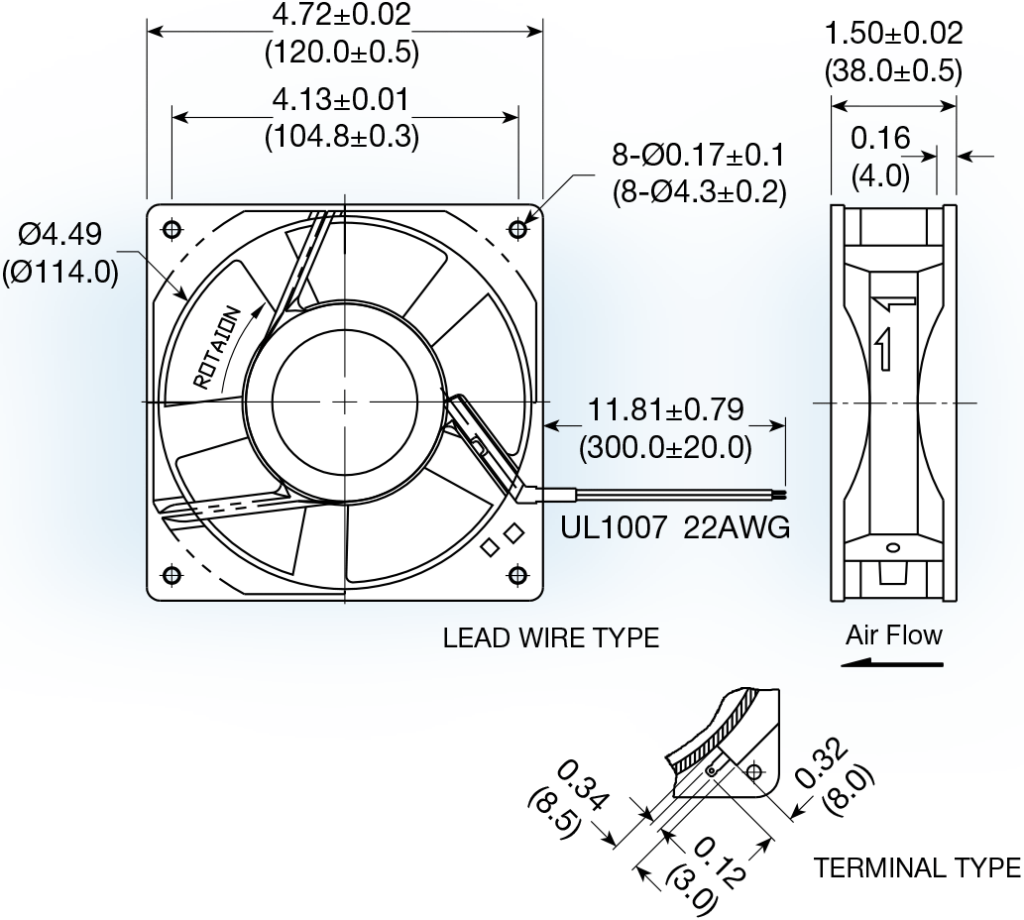

UF12AMR_drawing
0.04 0.08 0.12 0.16 0.20 0.24 0.28 0 20 40 60 80 100 120 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 60 H 50

Models

Model Number Rated Voltage Frequency Input Power Rated Current Locked Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A A RPM m3/min CFM mm/H2O in/H2O dBA
UF12AMR12-H 115VAC 50 18 0.22 0.26 2,600 2.69 95 6.35 0.25 49
60 16 0.19 0.23 2,950 3.00 106 6.10 0.24 51
UF12AMR23-H 230VAC 50 20 0.22 0.15 2,600 2.69 95 6.35 0.25 49
60 18 0.11 0.13 2,950 3.00 106 6.10 0.24 51
