Mechatronics UF17PC Series 172mm dia x 51mm AC Axial Fan

UF17PC_photo
Check Stock Request Quote

Specifications

Series UF17PC
Product Type AC Axial Fans
Dimensions 172mm dia x 51mm
6.77in dia x 2.00in
Rated Voltage 115/230VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 0.82 kg
Frame Construction Die-cast Aluminum
Impeller Construction UL94V-0 PBT Plastic
Motor Type Permanent split capacitor
Airflow Air exhaust over struts
Motor Protection Thermal protection
Storage Temp -40°C ~+70°C
Operating Temp -40°C ~+70°C
Insulation Class Class B

Available Options

Bearing Options Ball bearing
Connection Options 0.110" Terminal tabs, Lead wires
Protection Options Conformal coating, IP55, Salt Fog
Additional Options Tachometer Output

Accessories

Filter Kits AFG-15T 172mm (6.77") Frame Filter Kits
AFG-15TR 172mm (6.77") Frame Filter Kits
PFG-15 172mm (6.77") Frame Filter Kits
PFG-22 172mm (6.77") Frame Filter Kits
PFG-25 172mm (6.77") Frame Filter Kits
PFG2-15 172mm (6.77") Frame Filter Kits
PFG2-15NR 172mm (6.77") Frame Filter Kits
Plastic Fan Guards & Filters SC162 172mm (6.77") Frame Plastic Fan Guards & Filters
Metal Fan Guards SGR-59 172mm (6.77") Frame Metal Fan Guards

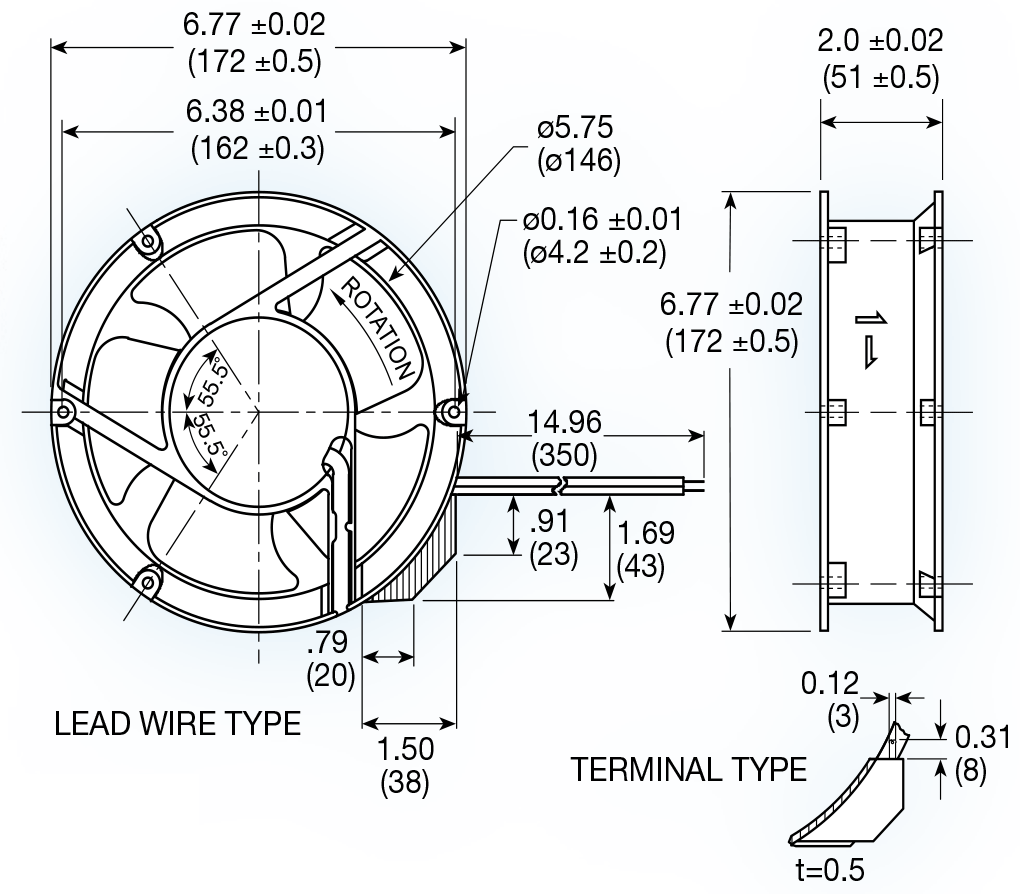

UF17PC_drawing
0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0 40 80 120 160 200 240 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 60 L 50 60 H 50

Models

Model Number Rated Voltage Frequency Input Power Rated Current Locked Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A A RPM m3/min CFM mm/H2O in/H2O dBA
UF17PC12-L 115VAC 50 31 0.17 0.21 1,400 2.49 88 96.52 3.80 31
60 31 0.15 0.2 1,700 3.00 106 5.59 0.22 37
UF17PC23-L 230VAC 50 29 0.08 0.09 1,400 2.49 88 96.52 3.80 31
60 29 0.07 0.09 1,700 3.00 106 5.59 0.22 37
UF17PC12-H 115VAC 50 31 0.26 0.41 2,850 5.80 205 16.00 0.63 50
60 31 0.25 0.43 3,400 6.40 226 20.07 0.79 55
UF17PC23-H 230VAC 50 29 0.12 0.19 2,850 5.80 205 16.00 0.63 50
60 29 0.12 0.19 3,400 6.40 226 20.07 0.79 55
