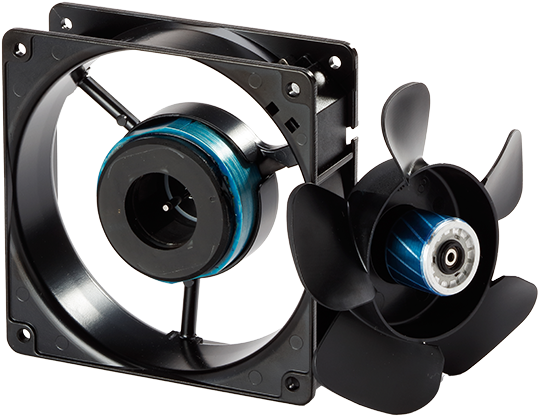

Mechatronics offers IP rated AC fan solutions for applications that require protection against moisture, dust, and salt exposure. A wide range of economical protection options are available on standard models, from conformal coating to fully encapsulated IP rated motors.

AC Environmental fans are specialized devices that include protection for challenging environments. They include dust and/or moisture resistant coatings and come with different IP (Ingress Protection) ratings, such as IP54 or IP55, to indicate their resistance to dust and moisture. This ensures reliable performance even in harsh environments.

Features

Durable Design: Engineered to withstand challenging conditions while protecting internal components.

Efficient Airflow: Moves large volumes of air for effective ventilation.

Applications

Industrial: Industrial Controls, Automation, Harsh Environments

Commercial: Material Processing, Fabrication Equipment, Food Equipment, Refrigeration

Series Dimensions Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
mm in V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
UF80B 80 x 80 x 25 3.15 x 3.15 x 0.98 115/230 50/60 11–16 0.06–0.15 1900–3100 0.42–0.68 15–24 2.03–5.59 0.08–0.22 28–35
UF92B 92 x 92 x 25 3.62 x 3.62 x 0.98 115/230 50/60 11–16 0.06–0.15 1800–3000 0.57–1.13 20–40 2.54–6.60 0.10–0.26 28–36
UF12B 120 x 120 x 25 4.69 x 4.69 x 0.98 115/230 50/60 11–16 0.06–0.15 1600–2900 1.19–2.12 42–75 1.78–6.10 0.07–0.24 31–42
UF13A 127 x 127 x 38 5.00 x 5.00 x 1.50 115/230 50/60 12–17 0.09–0.20 2700–3000 2.92–3.40 103–120 3.56–7.37 0.14–0.29 46–50
UF15AC 172 x 150 x 38 6.77 x 5.91 x 1.50 115/230 50/60 26–29 0.07–0.28 1400–3400 2.41–6.00 85–212 4.57–19.05 0.18–0.75 38–58
UF15PC 172 x 150 x 51 6.77 x 5.91 x 2.00 115/230 50/60 29–31 0.07–0.26 1400–3400 2.49–6.40 88–226 3.81–20.07 0.15–0.79 31–58
UF15KMR 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 45 0.25–0.54 2750–3150 6.37–7.22 225–255 12.70 0.50 58–61
UF15KM 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 42 0.23–0.52 2800–3250 5.52–6.51 195–230 13.97–16.00 0.55–0.63 49–53
UF15KC 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 38–39 0.17–0.38 2900–3400 6.80–8.30 240–293 17.02–22.86 0.67–0.90 55–60
UF15KCR 172 x 150 x 55 6.77 x 5.91 x 2.17 115/230 50/60 26–31 0.11–0.25 2850–3400 5.80–6.82 205–241 13.97–18.54 0.55–0.73 61–66
UF17PC 172 dia x 51 6.77 dia x 2.00 115/230 50/60 29–31 0.07–0.26 1400–3400 2.49–6.40 88–226 5.59–96.52 0.22–3.80 31–55
UF25GCM 254 dia x 89 10.00 dia x 3.50 115/230 50/60 45–80 0.20–0.70 2500–3800 17.80–23.80 627–841 12.40–25.30 0.49–1.00 64–70
UF25GC 254 dia x 89 10.00 dia x 3.50 115/230 50/60 31–98 0.14–0.88 1400–3200 13.03–22.99 460–812 8.13–22.86 0.32–0.90 52–65

AC Fan Environmental Protection Options

Mechatronics IP rated fans, blowers, and impellers come in a wide range of sizes and shapes. See below for more information about the available AC fan environmental protection options from Mechatronics.

Potted Motor (IP55)

The motor windings are potted with epoxy material to seal the motor from moisture exposure. This is designed to protect the fan from a direct stream of liquid from any direction.

Potted Motor (IP55)

Potted Motor + Salt Protection (IP55 + Salt Fog)

The motor windings are potted with epoxy material to seal the motor from moisture exposure. This is designed to protect the fan from a direct stream of liquid from any direction. There is an additional corrosion inhibitor applied over the motor to protect from salt exposure.

Conformal Coating (Up to IP54)

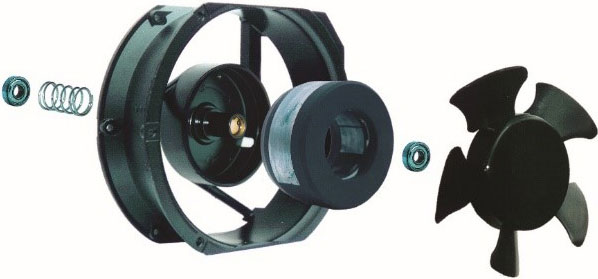

Conformal coating is a polymer applied by dipping the motor assembly before installation of the bearings and impeller, leaving a thin protective coating over all electrical components. Conformal coating protects against light moisture exposure such as condensation, or light contamination by dirt and dust particulate.

Ingress Protection (IP) Levels

What is ingress protection and what is the difference between IP54, IP55, IP57, or IP68 rated fans?

Ingress Protection (IP) ratings are defined by the international standard EN 60529 to identify levels of sealing effectiveness against intrusion from solids or liquids in mechanical or electrical enclosures. The first digit defines the protection level of an enclosure against solids and the second digit defines the protection level against liquids.

Ingress Protection)

IP_X Solids Protection Level
0 —
1 >50 mm
2 >12.5 mm
3 >2.5 mm
4 >1 mm
5 Dust protected
6 Dust tight

Example:
IP54 = Dust and Splashing Water Protected

IPX_ Liquids Protection Level
0 None
1 Dripping water
2 Dripping water when tilted at 15°
3 Spraying water
4 Splashing of water
5 Water jets
6 Powerful water jets
7 Immersion, up to 1 m depth
8 Immersion, 1 m or more depth
