AC Low Power Fans - Mechatronics

AC low power fans are designed to consume less energy than standard AC fans, and are ideal for applications requiring efficient and quiet air movement with low energy consumption.

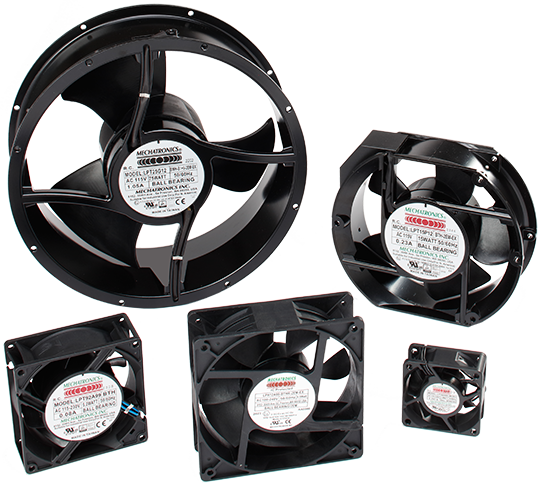

Mechatronics Low Power fans are electronically commutated (EC) and provide the efficiency of a DC fan with the simplicity of an AC fan. Available with global voltage input accommodating 100VAC to 240VAC, allowing for a single model to be used in products for both 115VAC and 230VAC applications.

Features

Energy Efficiency: Specifically designed to use minimal power, making them cost-effective to operate.

Increased Performance: Higher airflow options than traditional AC fans.

Quiet Operation: Generally quieter than higher-power fans, making them ideal for noise-sensitive environments.

Applications

Home Appliances: Refrigeration, Air Handling, Appliance Controls

Commercial: Refrigeration, Food Handling

Industrial: Controls, Cabinets, Enclosures

Available in common sizes, you can replace your AC fan with a low power EC fan to reduce wattage, increase airflow performance and/or reduce noise.

Series	Dimensions		Rated Voltage	Frequency	Input Power	Rated Current	Speed	Air Volume		Max Static Pressure (H₂O)		Sound Noise
Series	mm	in	V	Hz	W	A	RPM	m³/min	CFM	mm/H₂O	in/H₂O	dBA
LPT60B	60 x 60 x 25	2.36 x 2.36 x 1.00	100~240	50/60	2.4	0.04	3900	0.54	19.1	4.32	0.17	60
LPH60B	60 x 60 x 25	2.36 x 2.36 x 1.00	100~240	50/60	1.4–2.3	0.04–0.06	3500–4500	0.34–0.48	12–17	4.06–6.10	0.16–0.24	31–35
LPT80B	80 x 80 x 25	3.15 x 3.15 x 1.00	100~240	50/60	2.8	0.05	3150	0.88	31	3.05	0.12	72
LPC80B	80 x 80 x 25	3.15 x 3.15 x 0.98	100~240	50/60	3–5	–	3000–4500	1.10–1.50	38–53	3.50–6.30	0.14–0.25	31–45
LPH80B	80 x 80 x 25	3.15 x 3.15 x 1.00	100~240	50/60	1.6–4.5	0.04–0.06	2500–3500	0.74–1.10	26–39	2.79–6.35	0.11–0.25	24–31
LPH80A	80 x 80 x 38	3.15 x 3.15 x 1.50	100~240	50/60	2.7–5.5	0.04–0.09	3000–4000	0.88–1.16	31–41	4.06–7.11	0.16–0.28	24–31
LPT92B	92 x 92 x 25	3.62 x 3.62 x 1.00	100~240	50/60	3	0.05	2650	1.10	39	2.29	0.09	93
LPH92B	92 x 92 x 25	3.62 x 3.62 x 1.00	100~240	50/60	1.9–6	0.04–0.06	2500–3500	1.10–1.59	39–56	3.30–6.86	0.13–0.27	34–44
LPC92B	92 x 92 x 25	3.62 x 3.62 x 0.98	100~240	50/60	4–5.5	–	3000–4000	1.40–1.60	48–58	4.80–6.50	0.19–0.26	35–43
LPT92A	92 x 92 x 38	3.62 x 3.62 x 1.50	100~240	50/60	5.2	0.08	3850	1.42	50	8.38	0.33	43
LPH92A	92 x 92 x 38	3.62 x 3.62 x 1.50	100~240	50/60	2.2–5.5	0.05–0.11	2500–3500	1.36–1.93	48–68	3.81–7.37	0.15–0.29	31–42
LPH12B	120 x 120 x 25	4.72 x 4.72 x 1.00	100~240	50/60	2.4–6	0.06–0.10	2200–3000	1.64–2.24	58–79	2.54–4.57	0.10–0.18	37–44
LPC12B	120 x 120 x 25	4.72 x 4.72 x 0.98	100~240	50/60	5–5.5	–	2800–3200	2.30–2.80	80–100	6.30–7.80	0.25–0.31	44–48
LPT12A	120 x 120 x 38	4.72 x 4.72 x 1.52	100~240	50/60	4.9	0.08	3200	3.00	106	8.64	0.34	43
LPH12A-5	120 x 120 x 38	4.72 x 4.72 x 1.52	100~240	50/60	3.5–15	0.05–0.18	2000–3500	2.18–3.91	77–138	5.59–11.94	0.22–0.47	32–47
LPH12A	120 x 120 x 38	4.72 x 4.72 x 1.52	100~240	50/60	4.2–9.5	0.08–0.18	2500–3500	2.44–3.51	86–124	5.08–9.14	0.20–0.36	39–49
LPC12A	120 x 120 x 38	4.72 x 4.72 x 1.5	100~240	50/60	6–12	–	2800–4000	2.40–4.00	84–140	7.00–11.00	0.28–0.44	43–56
LPI133(73)	133 dia x 73	5.24 dia x 2.87	100~240	50/60	16–24	0.20–0.33	2800–3200	4.11–4.70	145–166	33.78–38.61	1.33–1.52	59–63
LPI133(91)	133 dia x 91	5.24 dia x 3.58	100~240	50/60	12–26	0.21–0.34	2800–3600	4.76–6.12	168–216	29.97–38.61	1.18–1.52	58–66
LPC15P	172 x 150 x 51	6.77 x 5.94 x 2	115/230	50/60	10–29	–	2800–4000	5.90–8.20	210–290	12.00–17.50	0.48–0.70	50–61
LPT15P	172 x 152 x 51	6.77 x 5.98 x 2.03	100~240	50/60	16	0.23	3000	6.23	220	17.78	0.70	49
LPH15P	172 x 152 x 51	6.77 x 5.91 x 2.00	100~240	50/60	11–22.5	0.10–0.20	2500–3200	5.13–6.46	181–228	9.65–15.24	0.38–0.60	48–55
LPI175	175 dia x 68.5	6.89 dia x 2.70	100~240	50/60	25–36	0.42–0.50	2600–3000	7.73–8.92	273–315	31.50–36.32	1.24–1.43	67–69
LPI190	190 dia x 68.5	7.48 dia x 2.70	115/230	50/60	49–77	0.42–1.03	2800–3200	11.33–12.94	400–457	56.90–65.02	2.24–2.56	74–77
LPI220	220 dia x 71	8.66 dia x 2.80	115/230	50/60	60–100	0.48–1.33	2600–3000	16.25–17.87	574–631	59.69–68.83	2.35–2.71	74–78
LPI225(85)	225 dia x 85	8.86 dia x 3.35	115/230	50/60	83–104	0.67–1.38	2400–2600	17.16–18.60	606–657	59.94–65.02	2.36–2.56	75–77
LPI225(99)	225 dia x 99	8.86 dia x 3.90	115/230	50/60	82–104	0.64–1.38	2400–2600	18.35–19.88	648–702	61.21–66.29	2.41–2.61	76–78
LPT200BPB	250 dia x 76	9.84 dia x 3.00	115/230	50/60	7–26	0.07–0.38	1400–2200	8.61–13.71	304–484	6.86–12.95	0.27–0.51	44–55
LPT200BMB	250 dia x 76	9.84 dia x 3.00	115/230	50/60	7–26	0.07–0.38	1400–2200	8.61–13.71	304–484	6.86–12.95	0.27–0.51	44–55
LPI250(89)	250 dia x 89	9.84 dia x 3.50	115/230	50/60	100–103	0.70–1.35	2500	19.03	672	71.63	2.82	78
LPI250(99)	250 dia x 99	9.84 dia x 3.90	115/230	50/60	105–107	0.78–1.42	2400	20.22	714	66.04	2.60	78
LPT25G	254 dia x 89	10.00 dia x 3.50	100~240, 115, 230	50/60	22–70	0.10–0.60	1750–2750	14.44–23.22	510–820	12.70–30.48	0.50–1.20	59–70
LPI280	280 dia x 125	11.02 dia x 4.92	115/230	50/60	103–106	0.70–1.43	2100	29.14	1029	57.15	2.25	75
