Mechatronics UF180APA Series 182mm dia x 84.9mm AC Motorized Impeller

UF180APA_photo
Check Stock Request Quote

Specifications

Series UF180APA
Product Type AC Motorized Impellers
Dimensions 182mm dia x 84.9mm
7.18in dia x 3.34in
Rated Voltage 115/230VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 1.40 kg
Frame Construction Die-cast Aluminum Motor Base
Impeller Construction UL94V-0 Nylon Impeller
Motor Type Permanent split capacitor
Airflow Radial
Motor Protection Thermal protection
Storage Temp -40°C ~+50°C
Operating Temp -40°C ~+50°C
Insulation Class Class B

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options Conformal coating
Additional Options Tachometer Output

Accessories

Inlet Rings IR-190 Inlet Rings

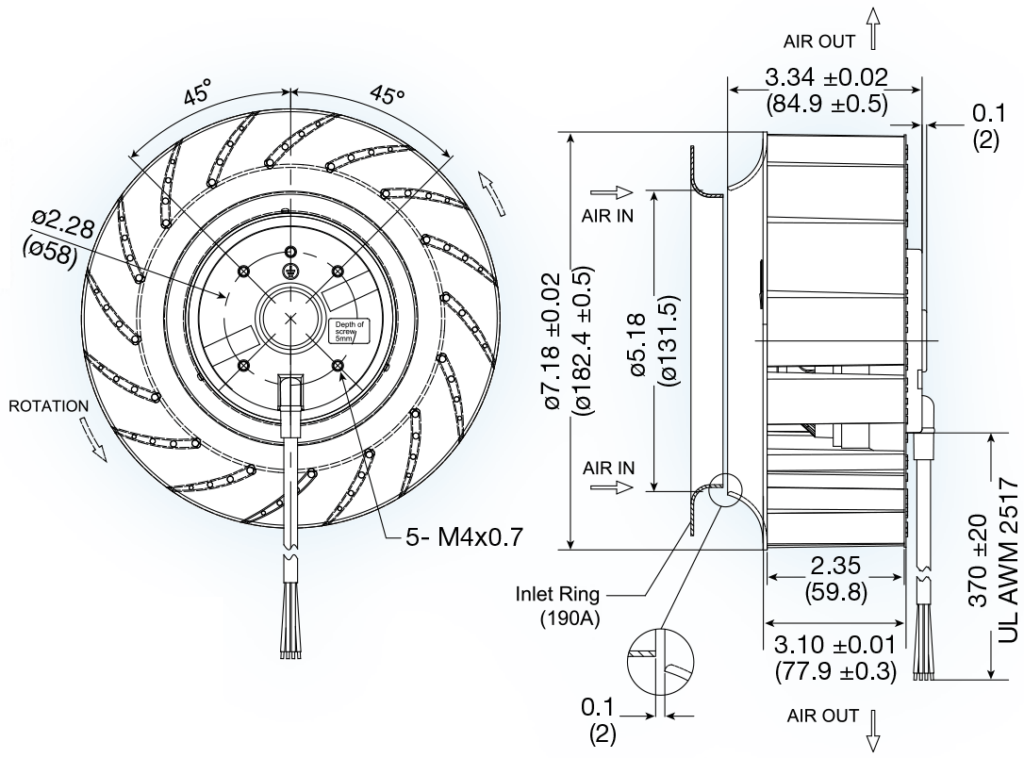

UF180APA_drawing
0 50 100 150 200 250 300 0.25 0.50 0.75 1.00 1.25 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 60 H 50

Models

Model Number Rated Voltage Frequency Input Power Rated Current Locked Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A A RPM m3/min CFM mm/H2O in/H2O dBA
UF180APA12-H1C2A 115VAC 50 70 0.62 0.86 2,300 8.50 300 25.40 1.00 63
60 83 0.75 0.93 2,400 8.50 300 33.02 1.30 63
UF180APA23-H1C2A 230VAC 50 70 0.30 0.41 2,300 8.50 300 25.40 1.00 63
60 81 0.35 0.44 2,400 8.50 300 33.02 1.30 63
