Mechatronics UF225(69)APA Series 225mm dia x 69mm AC Motorized Impeller

UF225(69)APA_photo
Check Stock Request Quote

Specifications

Series UF225(69)APA
Product Type AC Motorized Impellers
Dimensions 225mm dia x 69mm
8.86in dia x 2.72in
Rated Voltage 115/230VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 2.30 kg
Frame Construction Die-cast Aluminum Motor Base
Impeller Construction UL94V-0 Nylon Impeller
Motor Type Permanent split capacitor
Airflow Radial
Motor Protection Thermal protection
Storage Temp -40°C ~+50°C
Operating Temp -40°C ~+50°C
Insulation Class Class B

Available Options

Connection Options Lead wires
Protection Options Conformal coating
Additional Options Tachometer Output

Accessories

Inlet Rings IR-225 Inlet Rings

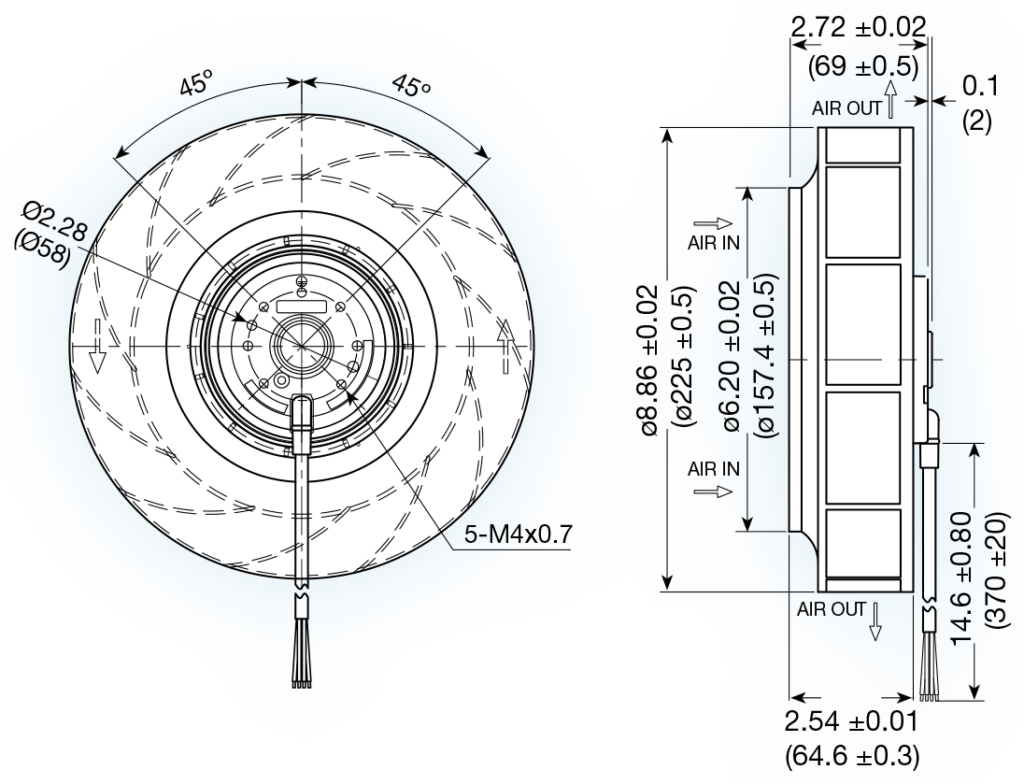

UF225(69)APA_drawing
0.5 1.0 1.5 2.0 2.5 3.0 0 100 200 300 400 500 600 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) 60 H 50

Models

Model Number Rated Voltage Frequency Input Power Rated Current Locked Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A A RPM m3/min CFM mm/H2O in/H2O dBA
UF225(69)APA12-H1C2A 115VAC 50 105 1.11 2.22 2,650 14.16 500 45.72 1.80 70
60 125 1.12 2.3 2,950 15.57 550 58.42 2.30 72
UF225(69)APA23-H1C2A 230VAC 50 105 1.14 1.14 2,650 14.16 500 45.72 1.80 70
60 125 0.56 1.15 2,950 15.57 550 58.42 2.30 72
