Mechatronics MR8032 Series 80mm x 80mm x 32mm DC Axial Fan

MR8032_photo
Check Stock Request Quote

Specifications

Series MR8032
Product Type DC Axial Fans
Dimensions 80mm x 80mm x 32mm
3.15in x 3.15in x 1.26in
Rated Voltage 12/24VDC
Weight 0.14 kg
Frame Construction UL94V-0 PBT Plastic
Impeller Construction UL94V-0 PBT Plastic
Motor Type Brushless DC
Airflow Air exhaust over struts
Motor Protection Reverse polarity protection, Locked rotor protection
Storage Temp -40°C ~+70°C
Operating Temp -10°C ~+70°C
Insulation Class Class A

Available Options

Bearing Options Ball bearing, Sleeve bearing
Connection Options Lead wires
Protection Options Conformal coating, Parylene coating
Additional Options Tachometer Output, Locked Rotor Alarm, PWM Speed Control

Accessories

Plastic Fan Guards & Filters 09325 80mm (3.25") Square Plastic Fan Guards & Filters
Filter Kits PFG2-80 80mm (3.25") Square Filter Kits
PFG2-80NR 80mm (3.25") Square Filter Kits
Metal Fan Guards SGR-31 80mm (3.25") Square Metal Fan Guards

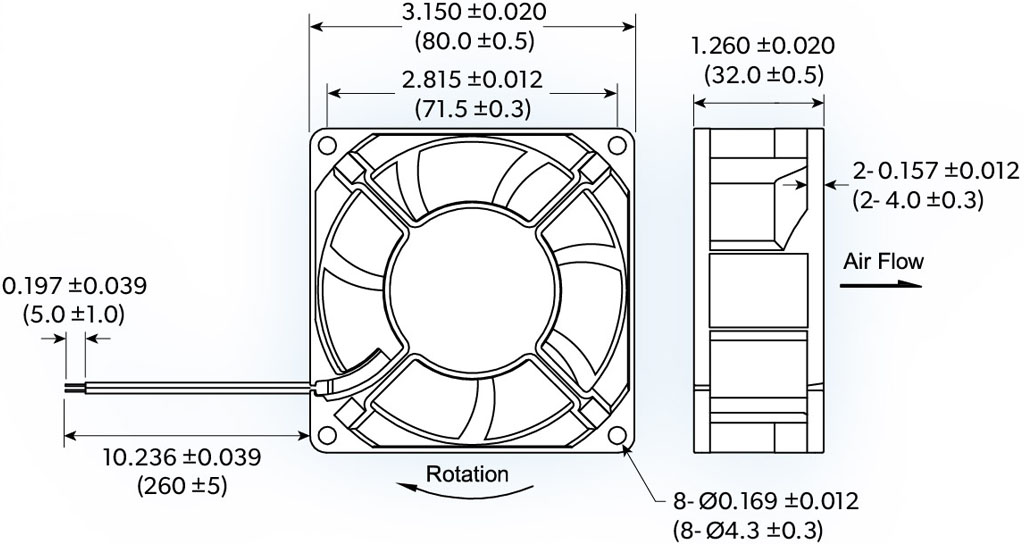

MR8032_drawing
1.25 0.75 1.00 0.50 0.25 0 10 20 30 40 50 60 70 80 90 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) L M H E

Models

Model Number Rated Voltage Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V W A RPM m3/min CFM mm/H2O in/H2O dBA
MR8032L12 12VDC 5.04 0.42 5,000 1.73 61 13.46 0.53 41.6
MR8032L24 24VDC 5.04 0.21 5,000 1.73 61 13.46 0.53 41.6
MR8032M12 12VDC 6.48 0.54 5,500 1.90 67 16.26 0.64 45.2
MR8032M24 24VDC 6.48 0.27 5,500 1.90 67 16.26 0.64 45.2
MR8032H12 12VDC 8.4 0.70 6,000 2.07 73 19.30 0.76 48.6
MR8032H24 24VDC 8.4 0.35 6,000 2.07 73 19.30 0.76 48.6
MR8032E12 12VDC 10.32 0.86 6,500 2.24 79 22.61 0.89 50.4
MR8032E24 24VDC 1.032 0.04 6,500 2.24 79 22.61 0.89 50.4
