Mechatronics LPA500 Series 655mm x 655mm x 214mm EC Large Axial Fan

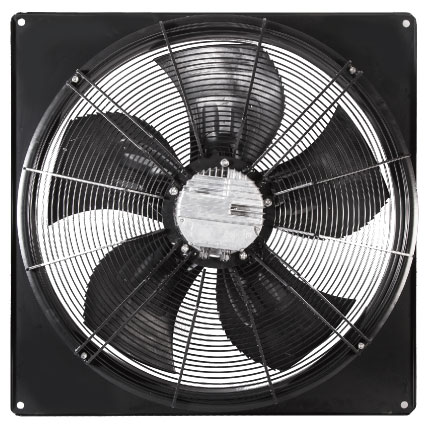

LPA500_photo
Check Stock Request Quote

Specifications

Series LPA500
Product Type EC Large Axial Fans
Dimensions 655mm x 655mm x 214mm
25.79in x 25.79in x 8.43in
Rated Voltage 400VAC
Operating Frequency 50/60Hz
Impeller Diameter 500 mm
Phase Three-phase
Frame Construction Die-cast Aluminum Motor Base
Impeller Construction UL94V-0 Plastic or Metal
Motor Type Brushless EC
Airflow Air intake or air exhaust
Motor Protection Locked rotor protection
Storage Temp -35°C ~+70°C
Operating Temp -25°C ~+60°C

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options IP54
Additional Options Tachometer Output, 0-10VDC + PWM Speed Control, Current Speed Control, +10VDC/+20VDC Output, Status Output, MODBUS

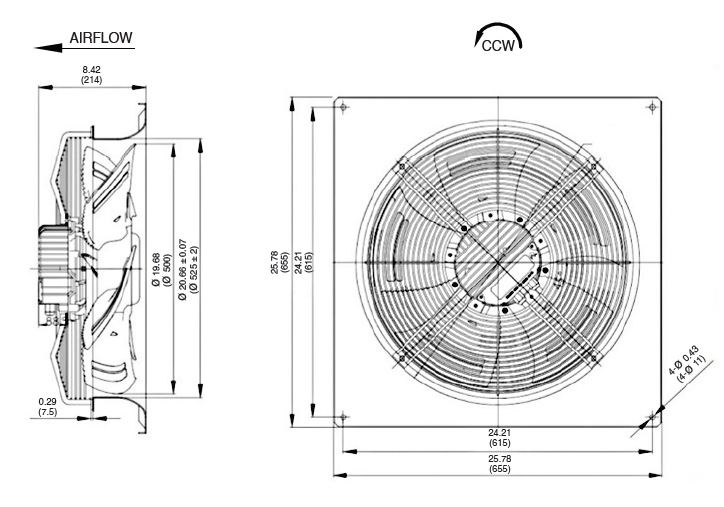

LPA500_drawing
0.20 0.40 0.60 0.80 1.00 0 1250 2500 3750 5000 6250 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) H

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
LPA500BPB40-H1E10BH-B1+7 400VAC 50/60 488 0.93 1,750 141.58 5,000 – – 72
