Mechatronics LPC12A Series 120mm x 120mm x 38mm EC Small Axial Fan

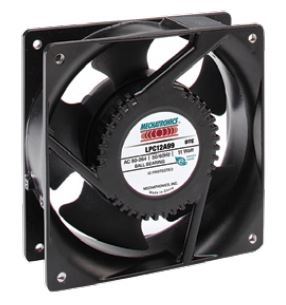

LPC12A99_photo
Check Stock Request Quote

Specifications

Series LPC12A
Product Type EC Small Axial Fans
Dimensions 120mm x 120mm x 38mm
4.72in x 4.72in x 1.5in
Rated Voltage 100~240VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 0.37 kg
Frame Construction Magnesium die cast frame
Impeller Construction UL94V-0 PBT Plastic
Motor Type Electronically commutated
Airflow Air exhaust over struts
Motor Protection Locked rotor protection
Storage Temp -20°C ~+70°C
Operating Temp -10°C ~+70°C

Available Options

Bearing Options Ball bearing
Connection Options Lead wires, 0.110" Terminal tabs
Protection Options IP54

Accessories

Plastic Fan Guards & Filters 09450 120mm (4.72") Square Plastic Fan Guards & Filters
Filter Kits AFG-12T 120mm (4.72") Square Filter Kits
AFG-12TR 120mm (4.72") Square Filter Kits
PFG-12 120mm (4.72") Square Filter Kits
PFG-12X3 120mm (4.72") Square Filter Kits
PFG2-12 120mm (4.72") Square Filter Kits
PFG2-12NR 120mm (4.72") Square Filter Kits
Metal Fan Guards SGR-47 120mm (4.72") Square Metal Fan Guards
SGR-47A 120mm (4.72") Square Metal Fan Guards

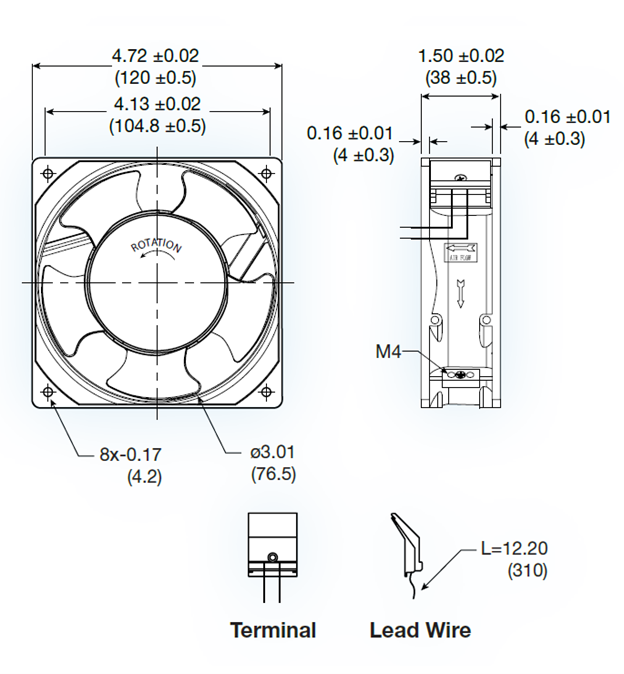

LPC12A99_drawing
0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0 20 40 60 80 100 120 140 160 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) L M H E

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
LPC12A99-L 100~240VAC 50/60 6 – 2,800 2.40 84 7.00 0.28 43
LPC12A99-M 100~240VAC 50/60 8 – 3,200 2.80 100 8.50 0.34 47
LPC12A99-H 100~240VAC 50/60 10 – 3,600 3.40 120 9.80 0.39 52
LPC12A99-E 100~240VAC 50/60 12 – 4,000 4.00 140 11.00 0.44 56
