Mechatronics LPT12A Series 120mm x 120mm x 38mm EC Small Axial Fan

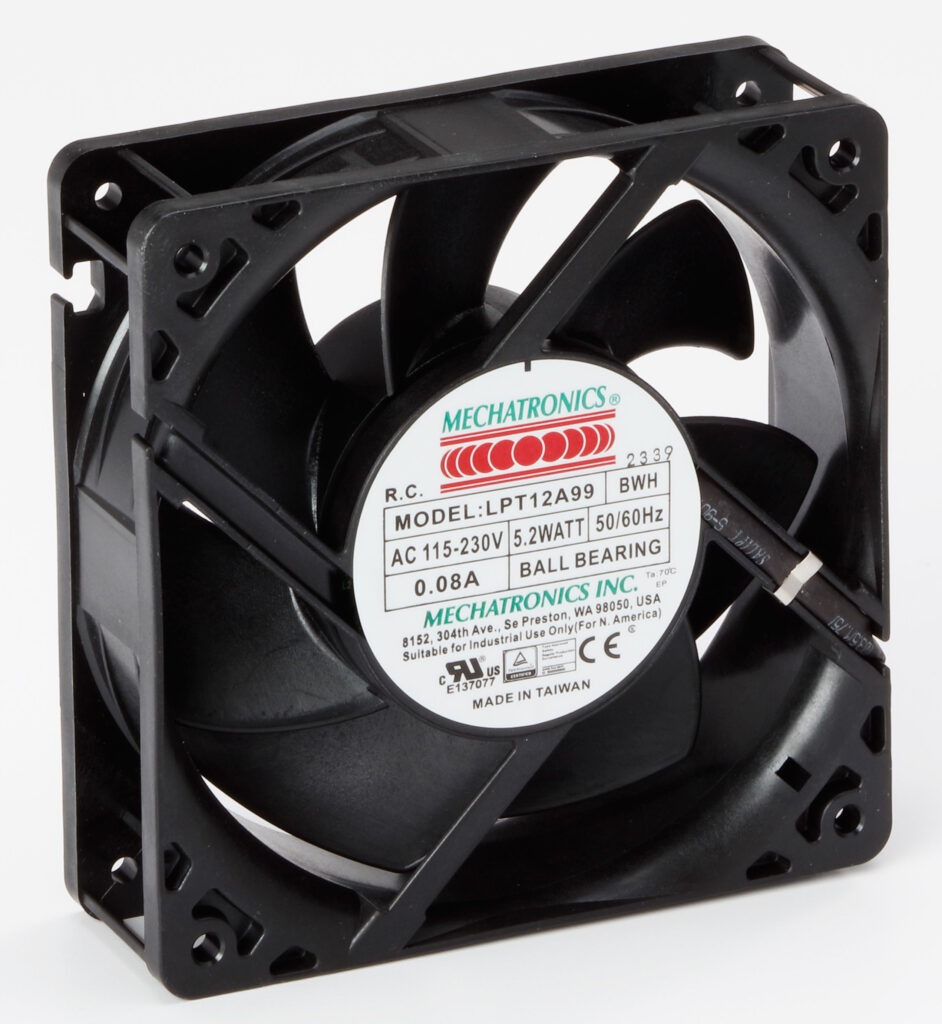

LPT12A_photo
Check Stock Request Quote

Specifications

Series LPT12A
Product Type EC Small Axial Fans
Dimensions 120mm x 120mm x 38mm
4.72in x 4.72in x 1.52in
Rated Voltage 100~240VAC
Operating Frequency 50/60Hz
Phase Single-phase
Weight 0.29 kg
Frame Construction UL94V-0 PBT Plastic
Impeller Construction UL94V-0 PBT Plastic
Motor Type Brushless EC
Airflow Air exhaust over struts
Motor Protection Locked rotor protection
Storage Temp -20°C ~+70°C
Operating Temp -10°C ~+70°C

Available Options

Connection Options 0.110" Terminal tabs, Lead wires
Protection Options IP68
Additional Options ATEX, PWM Speed Control, Tachometer Output
ATEX Option Rating EX II 3G Ex nA IIC Gc

Accessories

Plastic Fan Guards & Filters 09450 120mm (4.72") Square Plastic Fan Guards & Filters
Filter Kits AFG-12T 120mm (4.72") Square Filter Kits
AFG-12TR 120mm (4.72") Square Filter Kits
PFG-12 120mm (4.72") Square Filter Kits
PFG-12X3 120mm (4.72") Square Filter Kits
PFG2-12 120mm (4.72") Square Filter Kits
PFG2-12NR 120mm (4.72") Square Filter Kits
Metal Fan Guards SGR-47 120mm (4.72") Square Metal Fan Guards
SGR-47A 120mm (4.72") Square Metal Fan Guards

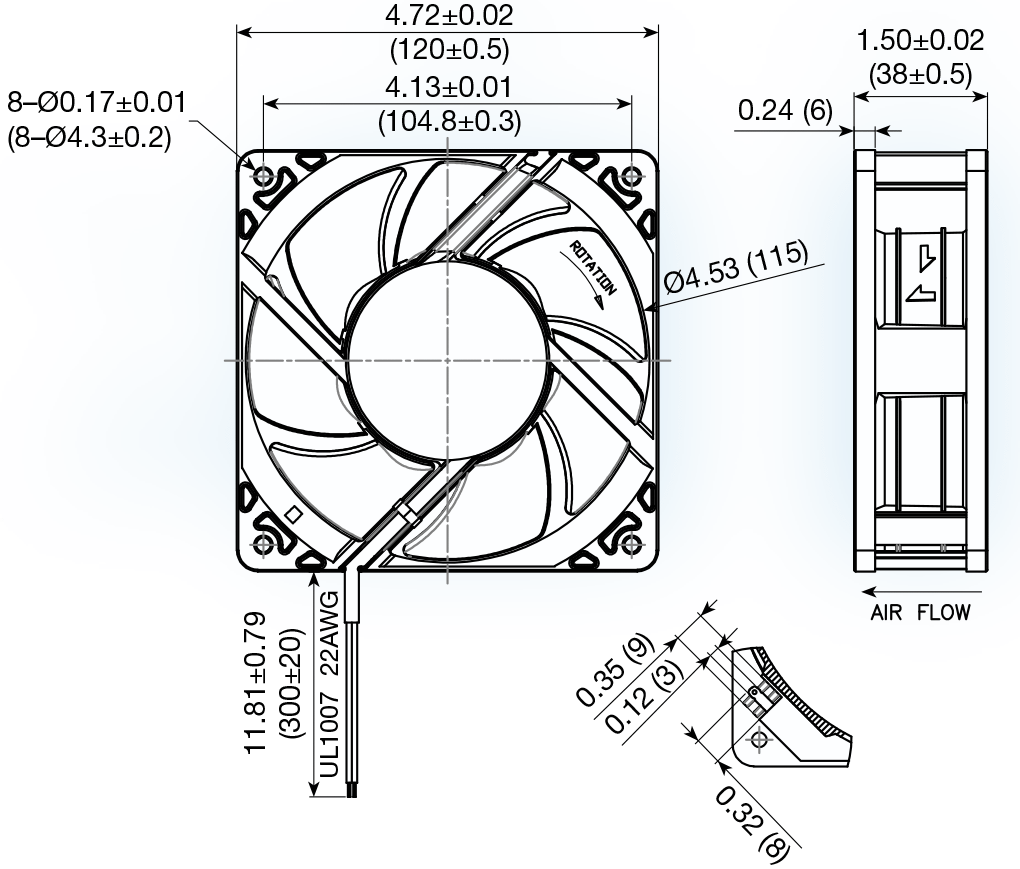

LPT12A_drawing
0 20 40 60 80 100 0.15 0.20 0.25 0.30 0.35 0.40 0.10 0.05 120 0.45 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM)

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
LPT12A99-BWHR 100~240VAC 50/60 4.9 0.08 3,200 3.00 106 8.64 0.34 43
