Mechatronics LPAI355 Series 500mm x 500mm x 330mm EC Large Motorized Impeller

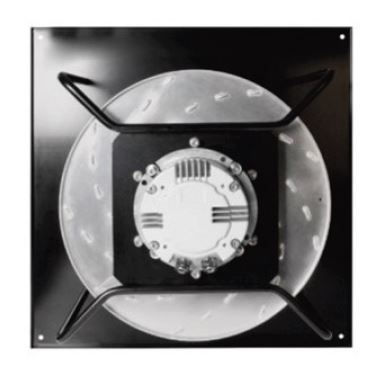

LPAI355_photo
Check Stock Request Quote

Specifications

Series LPAI355
Product Type EC Large Motorized Impellers
Dimensions 500mm x 500mm x 330mm
19.69in x 19.69in x 12.99in
Rated Voltage 230VAC
Operating Frequency 50/60Hz
Impeller Diameter 360 mm
Phase Single-phase
Frame Construction Die-cast Aluminum Motor Base
Impeller Construction Aluminum
Motor Type Brushless EC
Airflow Radial
Motor Protection Locked rotor protection
Storage Temp -35°C ~+70°C
Operating Temp -25°C ~+60°C

Available Options

Bearing Options Ball bearing
Connection Options Lead wires
Protection Options IP54
Additional Options Tachometer Output, 0-10VDC + PWM Speed Control, Current Speed Control, +10VDC Output, Status Output

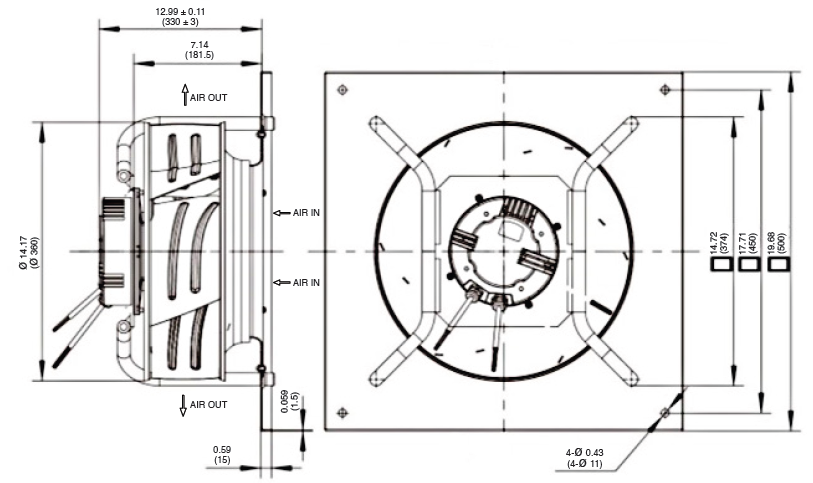

LPAI355_drawing
0.50 1.00 1.50 2.00 2.50 0 500 1000 1500 2000 STATIC PRESSURE (IN. OF WATER) AIR FLOW (CFM) H

Models

Model Number Rated Voltage Frequency Input Power Rated Current Speed Air Volume Max Static Pressure (H2O) Sound Noise
V Hz W A RPM m3/min CFM mm/H2O in/H2O dBA
LPAI355AMA23-H1D10A-B1+7 230VAC 50/60 294 1.34 1,800 52.50 1,853 – – 70
